Fig. 7.

Download original image

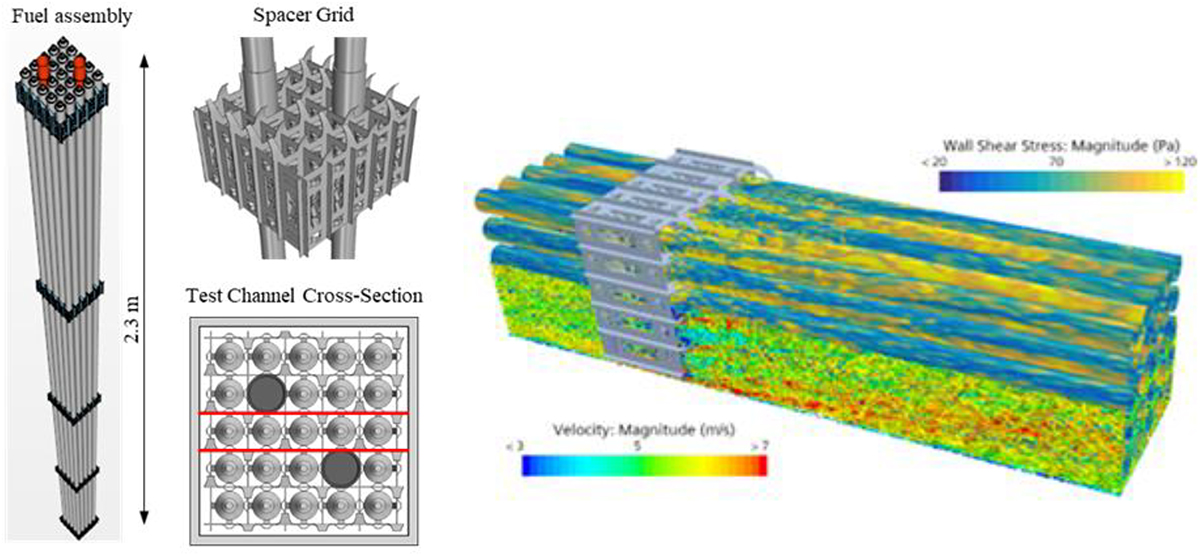

ALAIN 5×5 experiment by Framatome with reduced-length assembly with 23 rods, two guide tubes and several spacer grids (left); LES simulation results, generated by Framatome, showing velocity and wall shear stress magnitudes in the computational single-span CFD domain (right).
