Fig. 1.
Download original image

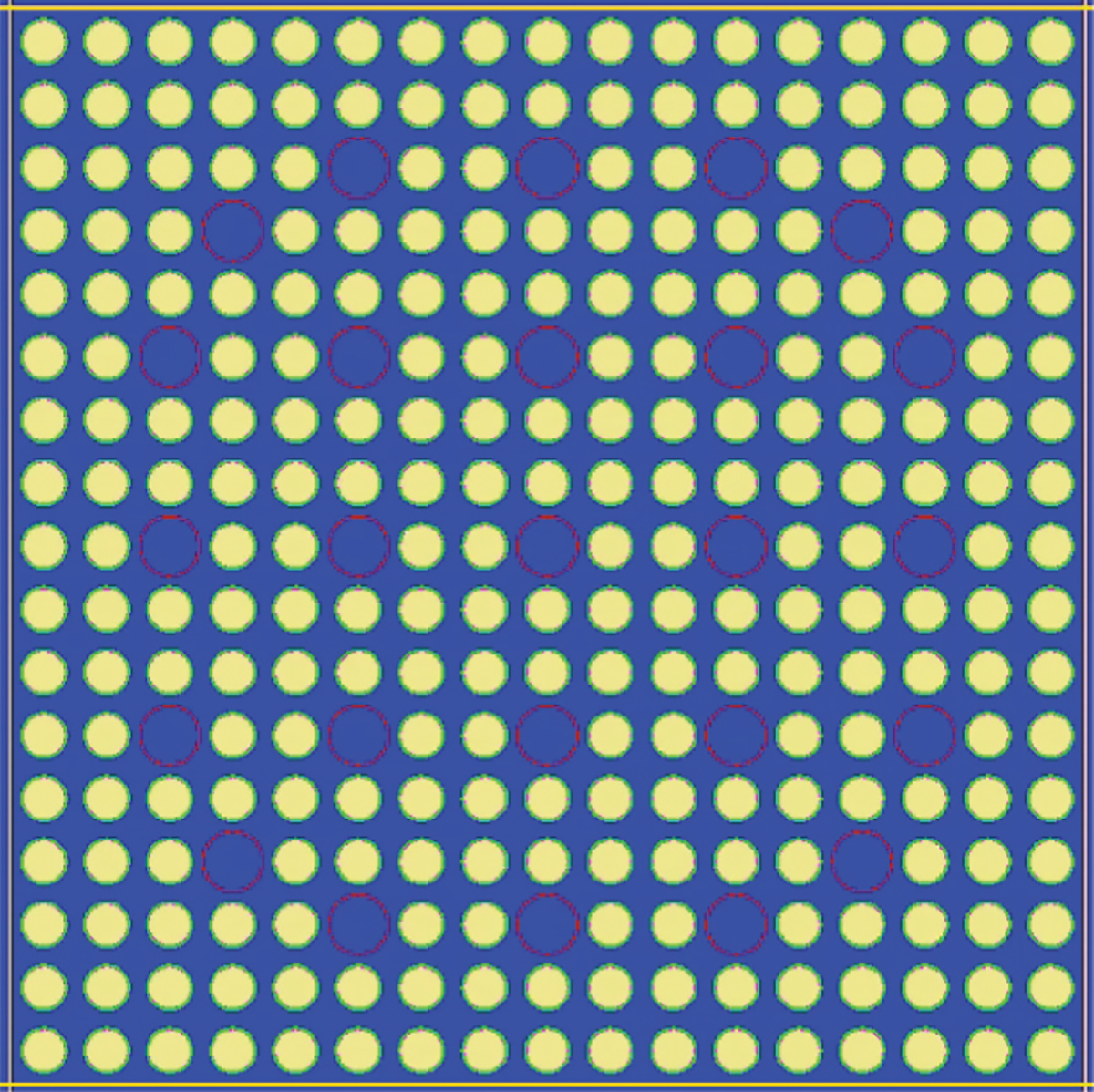

Radial cut of a 17 × 17 UOX fuel assembly [9]. The UO2 fuel rods are shown in yellow. The instrumentation tube and guide tubes are represented by black circles filled with blue, which stands for water holes.
