Fig. 16


Download original image

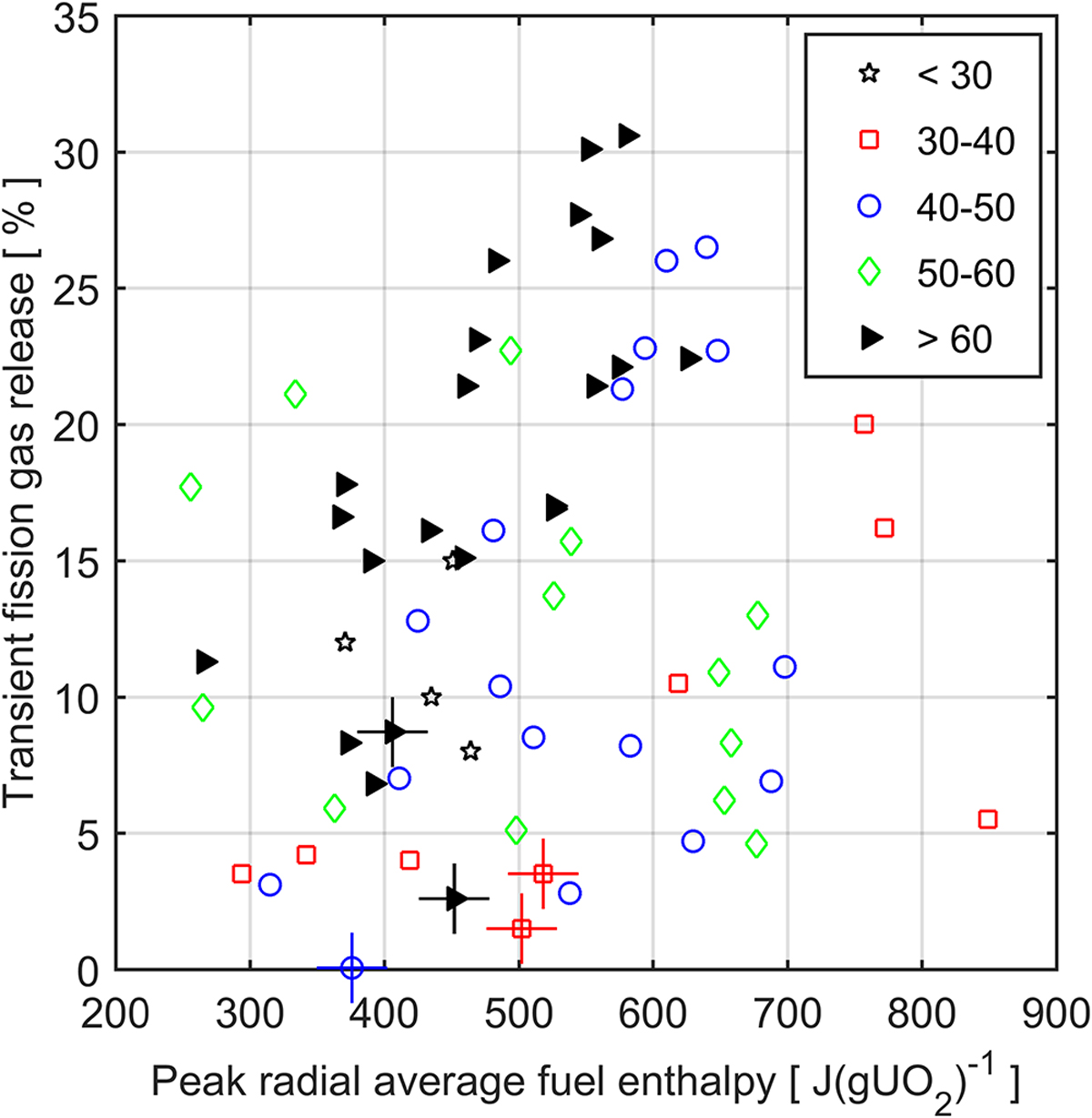

Measured transient fission gas release for pre-irradiated UO2 fuel rods, tested in the CABRI, NSRR and BIGR pulse reactor facilities, plotted versus peak radial average fuel enthalpy reached in each test [5]. The legend denotes fuel pellet burnup in MWd(kgU)−1. Crosses indicate tests done on rods with large grain-size (25–40 μm) fuel pellets.
