Fig. 15


Download original image

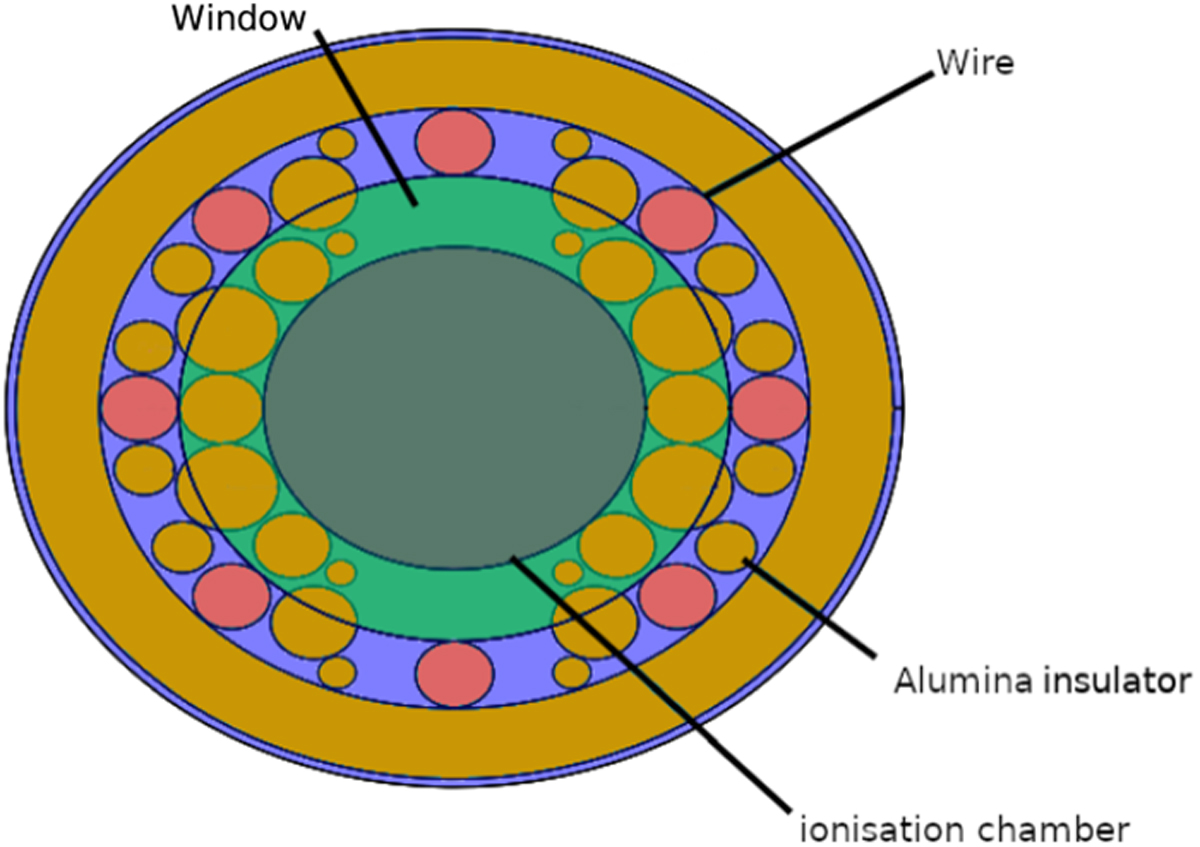

Top view in transparency of the approximated mpfd geometry drawn by COSICAF. Alumina casing on the side of the ionisation chamber is approximated by cylinder shells and rods (in yellow) while electrodes are depicted in red.
