Fig. 10.
Download original image

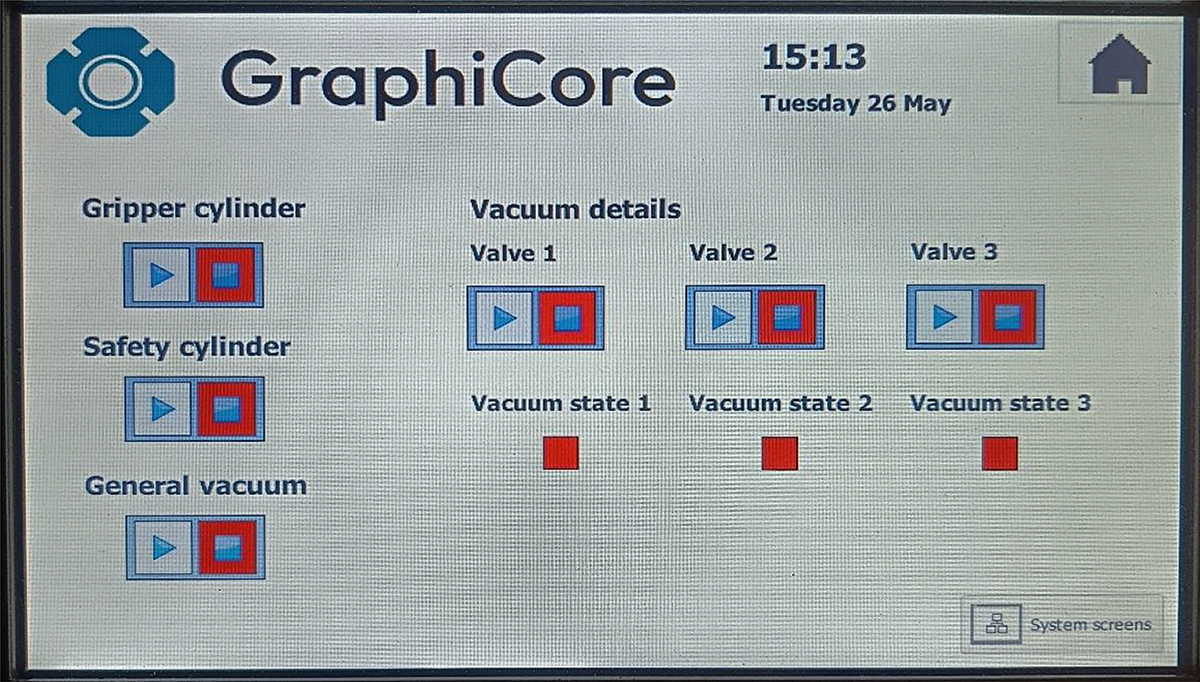

HMI to control the end-effector. The buttons allow to control vacuum generation and to handle cylinders retraction/expansion. The red squares monitor the vacuum level read from vacuum pressure switch; a green light would indicate success to reach the desired level of vacuum.
