Fig. 11.
Download original image

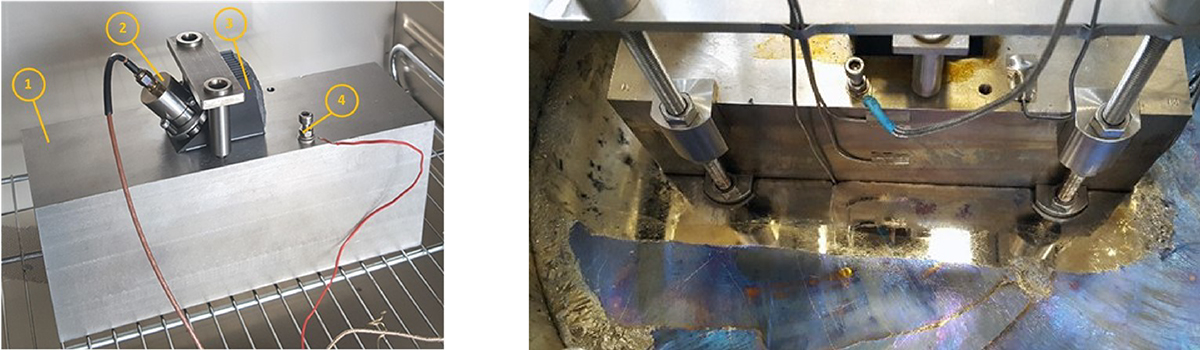

Ultrasonic sensor installed on the calibration block for tests in air (left), and experimental setup mounted in the LBE vessel (right) (courtesy of KTU). 1 – calibration block; 2 – ultrasonic transducer; 3 – wedge; 4 – temperature sensor.
