Fig. 13.


Download original image

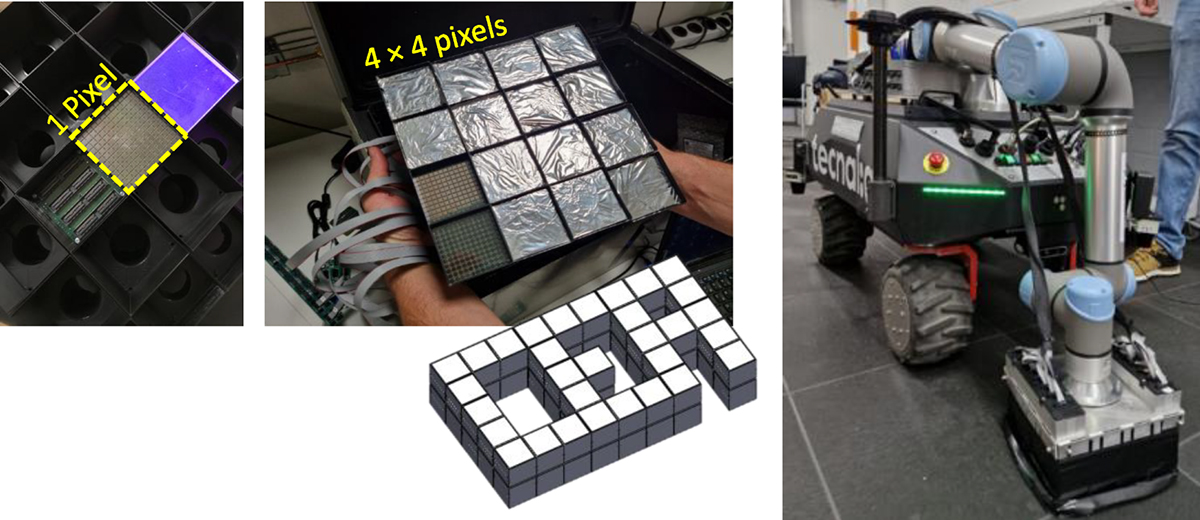

CEAfs pixelated β/γ surface contamination monitor. 223 Left: electronic board, silicon photomultiplier (SiPM) on top of it, and plastic scintillators on top of both; making the sensing 224 unit of a pixel. Middle: 16 pixels assembled in a 4×4 square, with mylar cover for lightproofness. Right: 16-pixels 225 configuration embedded on the robotic arm during the final tests at AiNT premises.
