Fig. 2.

Download original image

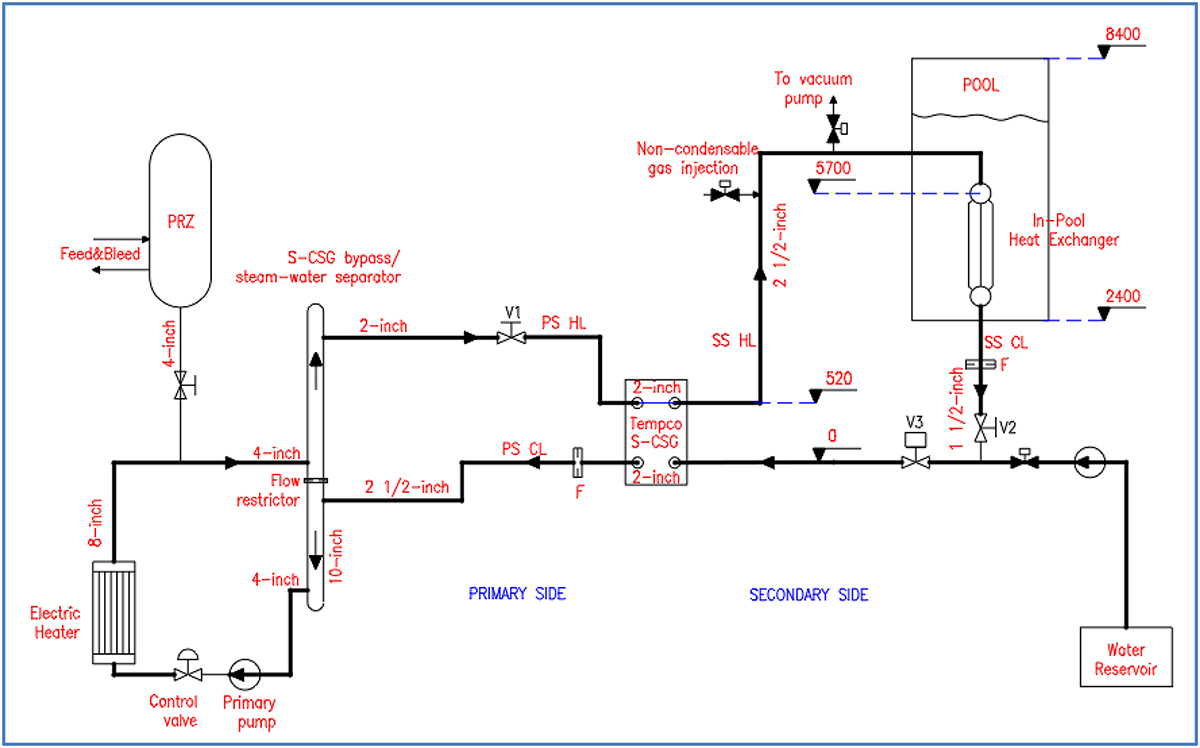

ELSMOR experimental facility at SIET [3]. The performance of steam generator in the middle of the figure (S-CSG) with various fractions of non-condensable gasses is of the interest. Water is electrically heated in the primary circuit and the steam quality is controlled in the steam-water separator, whereas the fraction of noncondensable gases is controlled on the secondary side.
