Fig. 1
Download original image

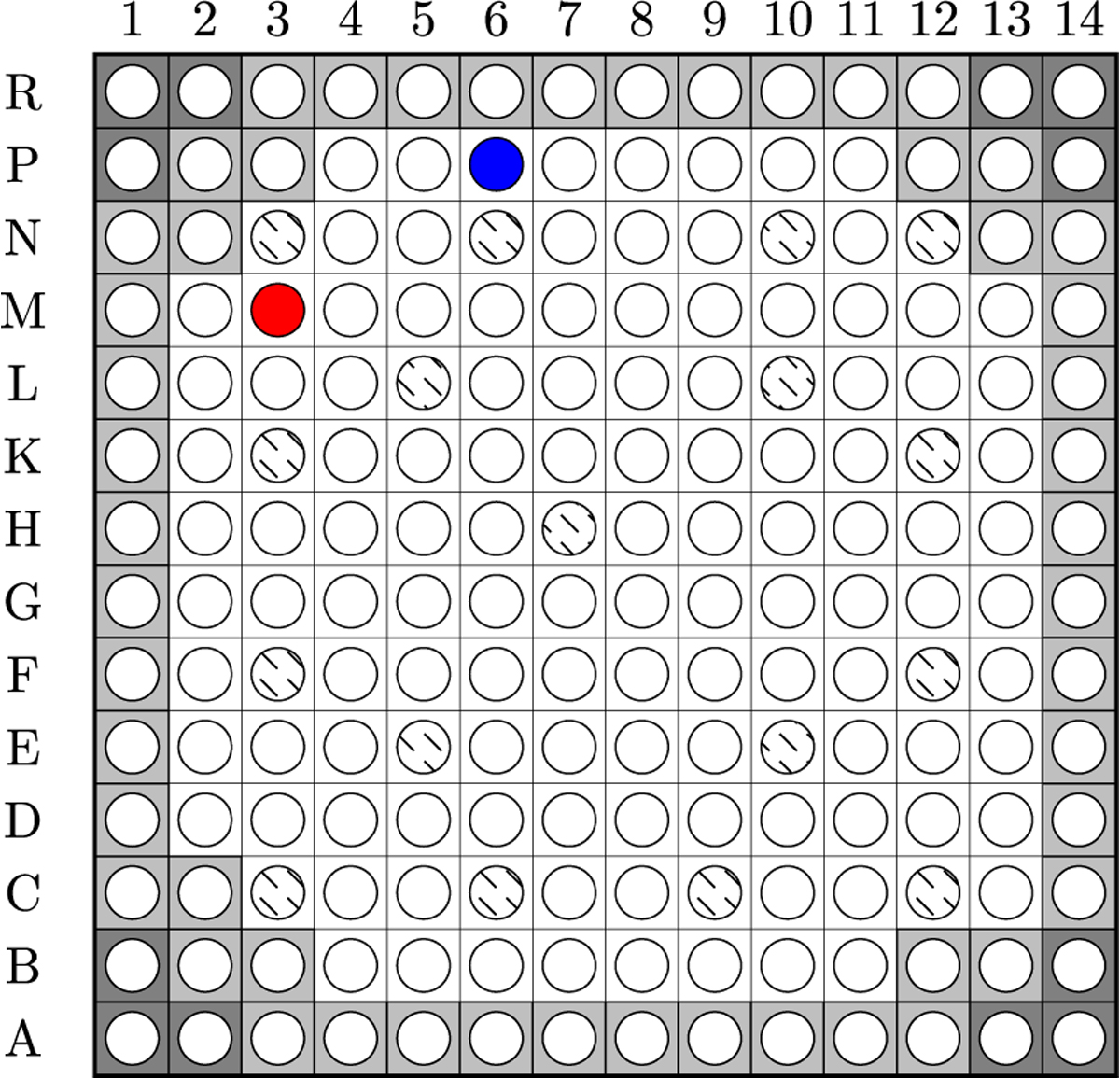

Radial locations of the rods containing the BM1 (red) and BM3 (blue) samples in the assembly M109. The variations of gray represent different Pu enrichments. Water channels are indicated by dashes circles.
