Fig. 11


Download original image

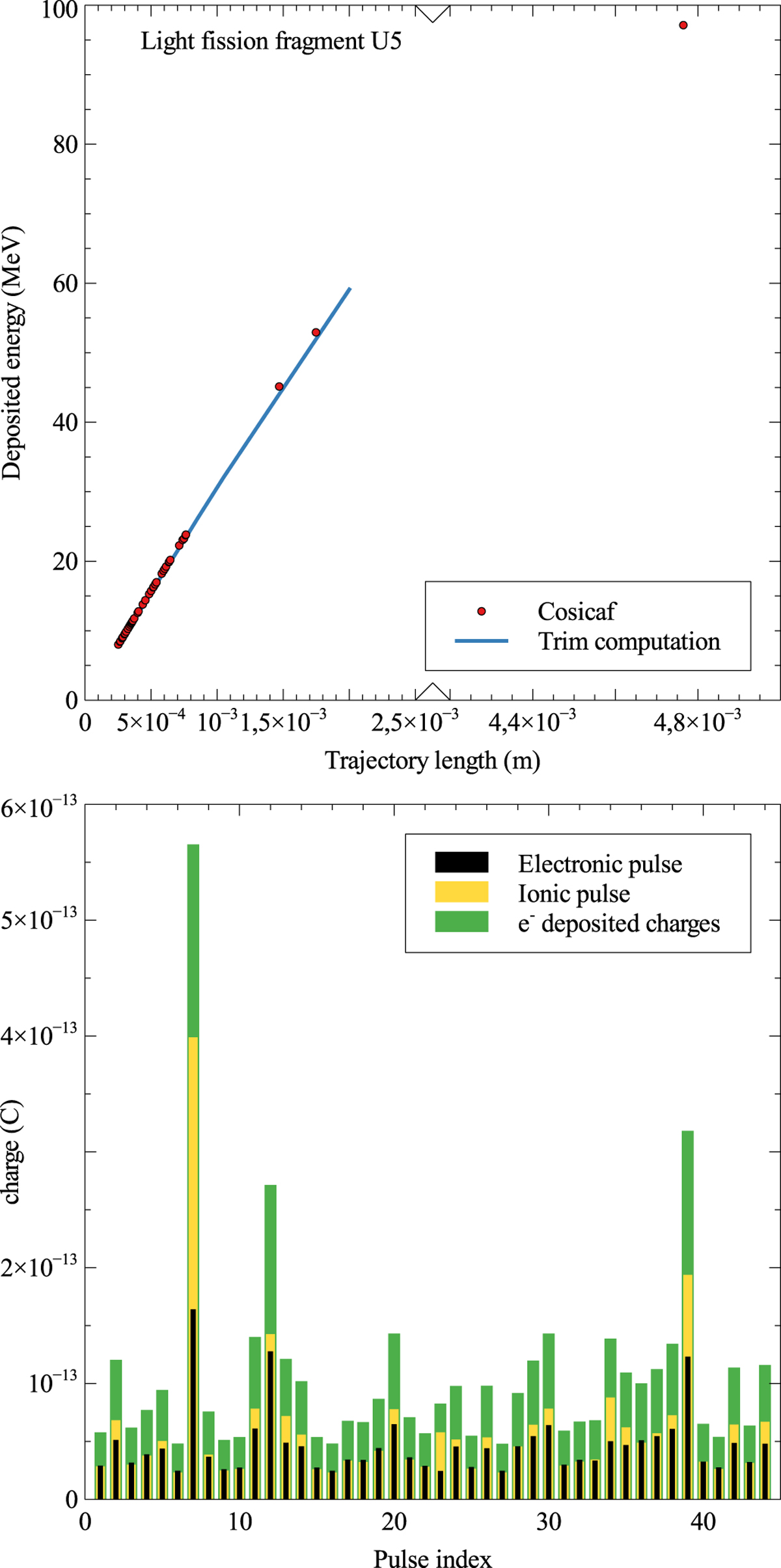

Top: comparison between COSICAF and TRIM energy deposition for various trajectories. The straight trajectory hypothesis fails only for long trajectories. Bottom: charges induced by electrons (black) and ions (yellow) at the electrode compared to the total amount of electron charge generated by the heavy ion in the inter-electrode gap (green).
