Fig. 6


Download original image

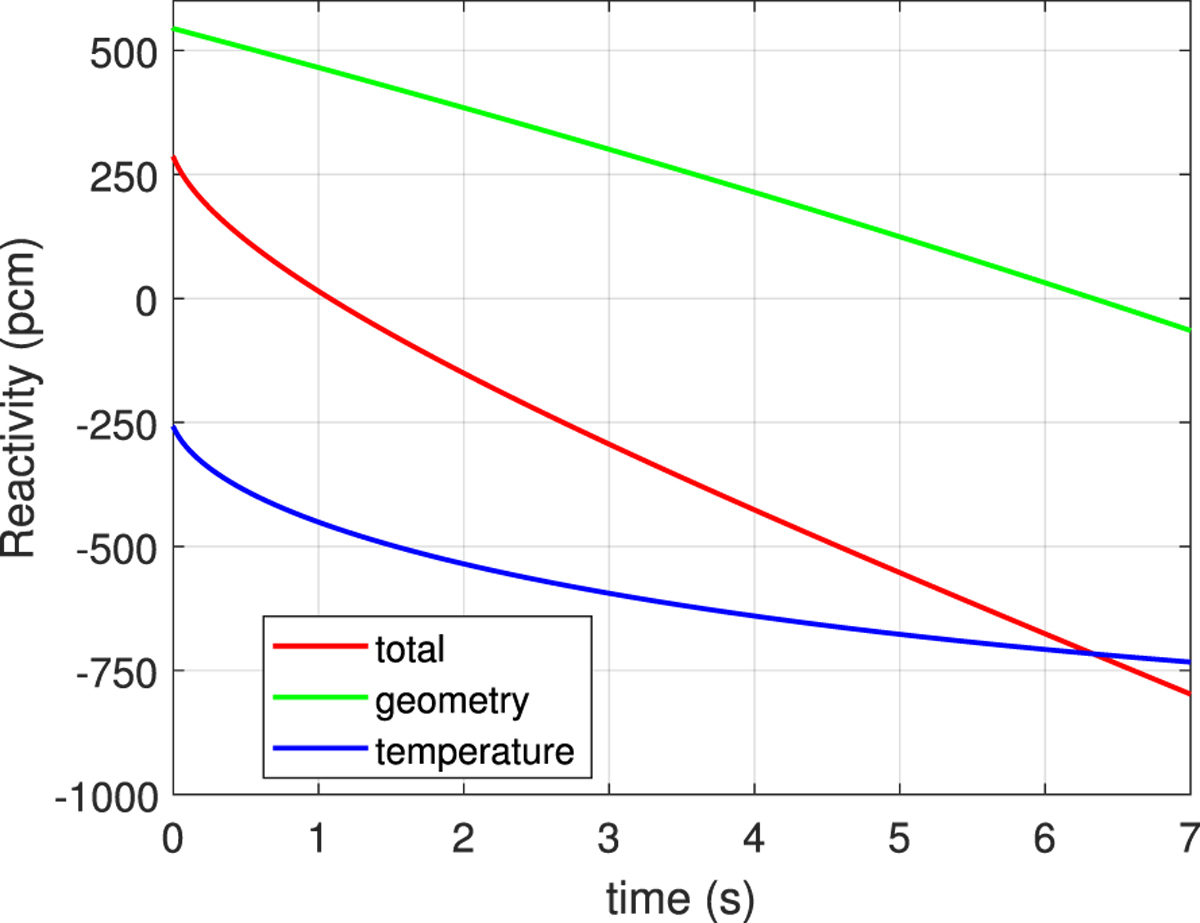

System reactivity as a function of time during the first 7 seconds of transient. The red, the green and the blue lines represent the total ρ(h, T), the geometry-related ρh(h, T) and the temperature-related ρT(h, T) system reactivities, respectively.
