Fig. 5.
Download original image

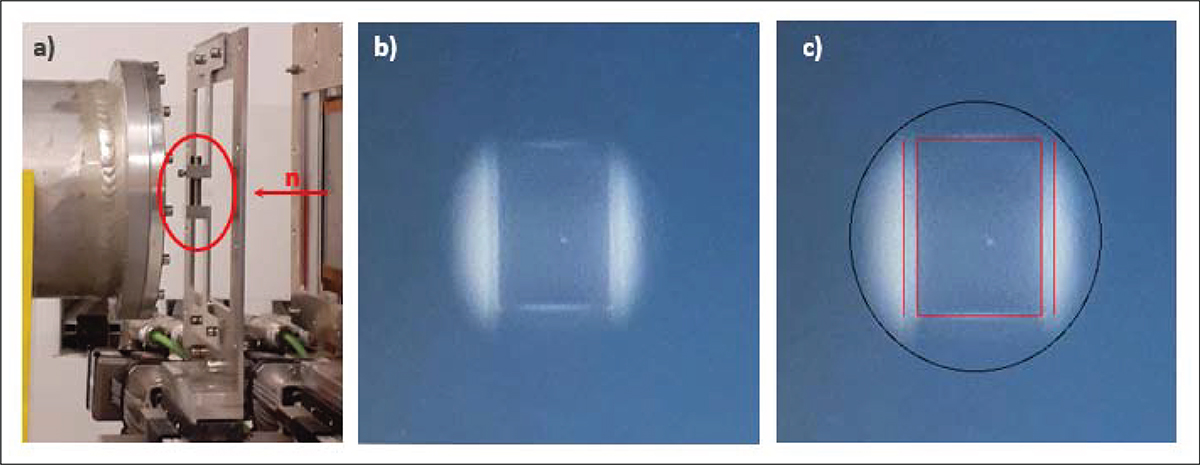

The left-hand plot (a) shows the MINERVE sample placed vertically in the neutron beam. The middle plot (b) is a picture of the MINERVE sample in the neutron beam. The right-hand plot (c) indicates the limit of the pellet, zircaloy tube, and neutron beam. The collimation was defined to shape a neutron beam diameter of 10 mm.
