Fig. 12


Download original image

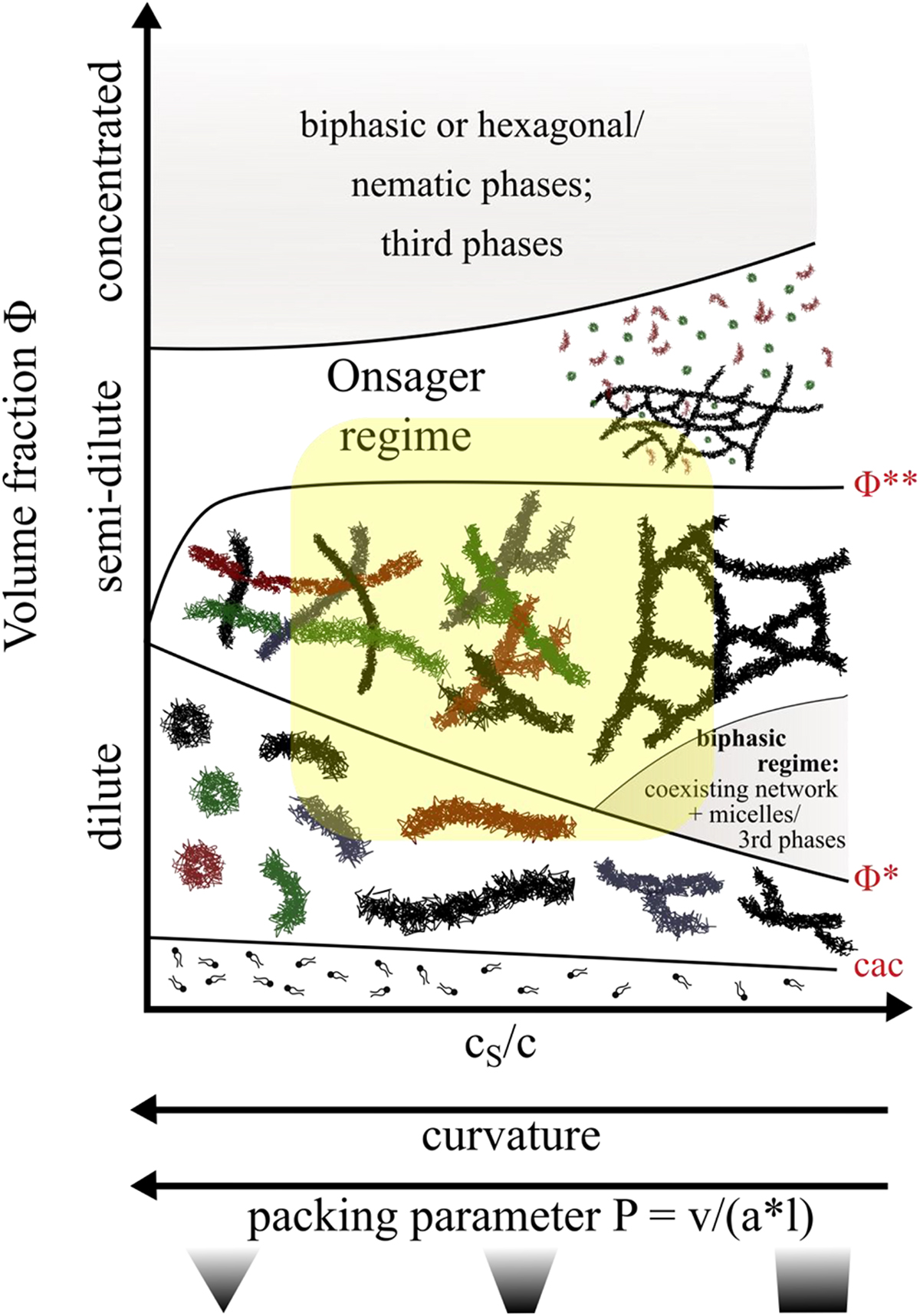

Schematic view of the different regimes of gelation for concentrated cylinders. Replotted and adjusted from [48]. The microstructure depends both on the volume fraction and the metal concentration determining the spontaneous curvature of the extractant. In yellow, the most probable concentration range is indicated.
