Fig. 1


Download original image

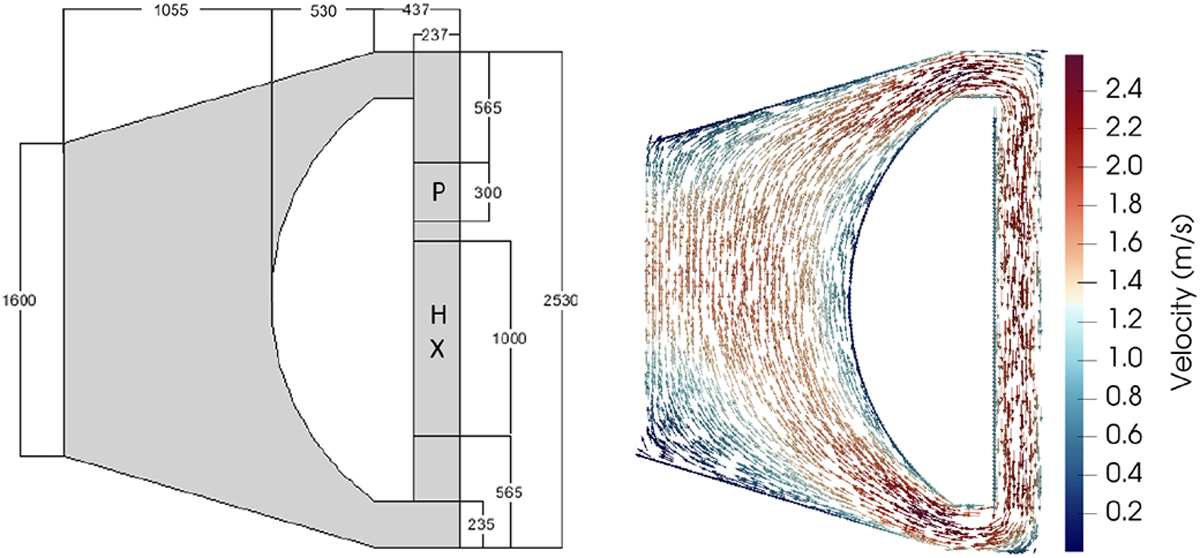

The geometry and flow field used for the snapshot generation with the FOM. Dimensions are shown in mm. (P – Pump, HX – Heat Exchanger).
