Fig. 3.


Download original image

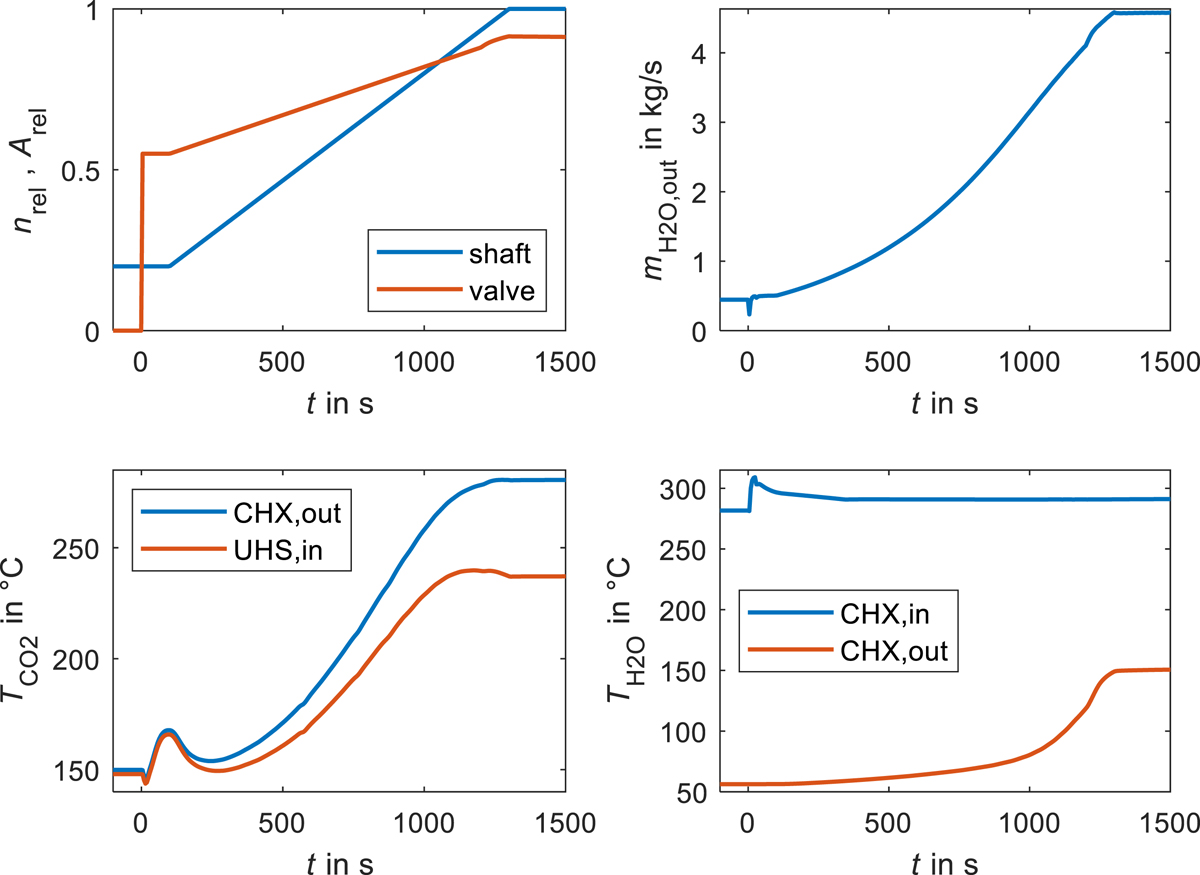

Parameters during start-up: relative turbomachinery shaft speed in relation to the design point speed and relative valve opening in the pipe after the CHX (top left); condensate mass flow rate of the CHX (top right); CHX outlet and UHS inlet temperature on the CO2 side (bottom left); CHX inlet and outlet temperature on the H2O side (bottom right).
