Fig. 4.


Download original image

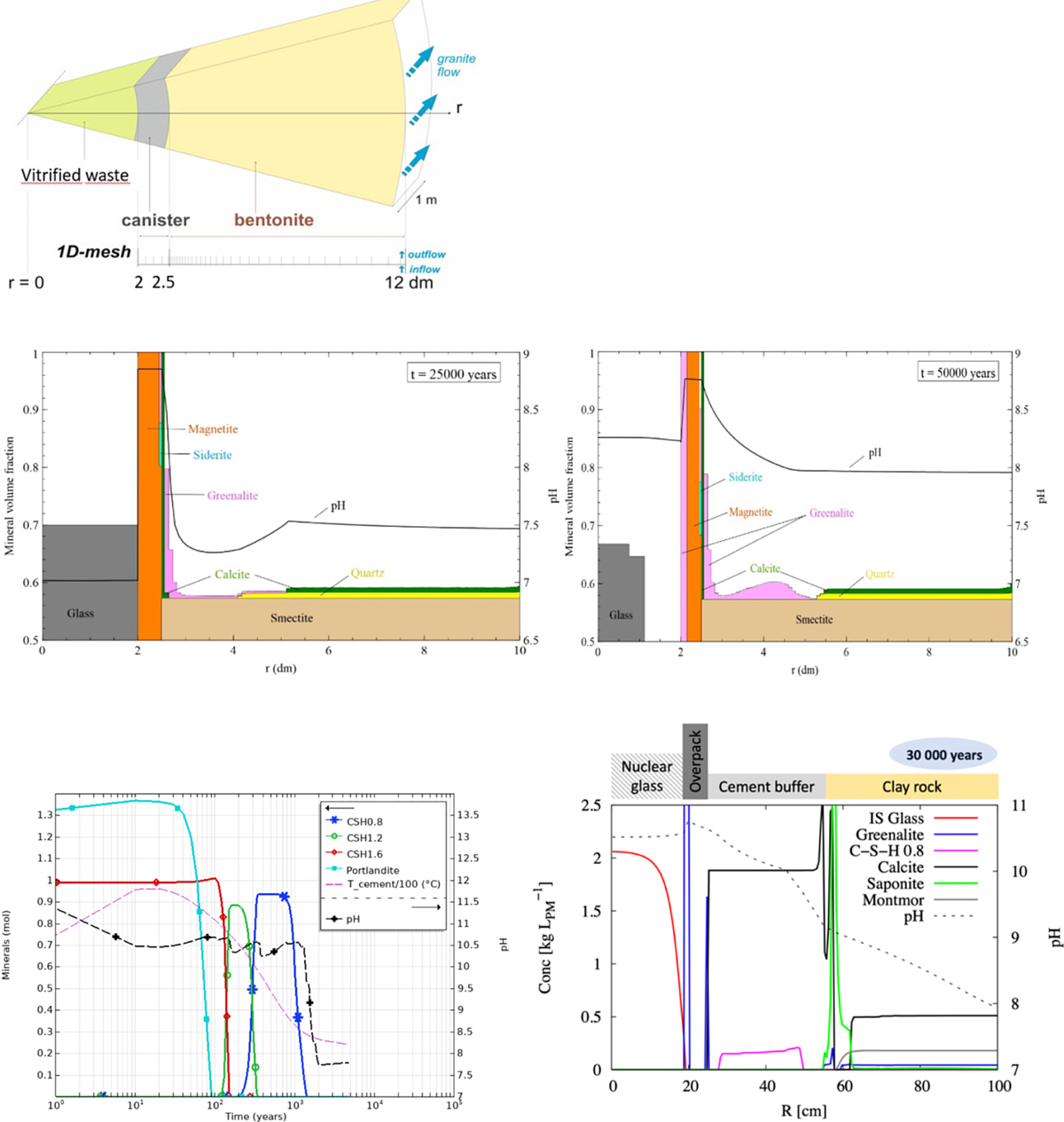

(Top) 1D radial geometry of the HLW disposal cell in granite, (middle) CORE 2D modelling of the geochemical evolution in a HLW disposal cell in granite, (bottom left) HLW disposal cell in clay: transient stage with variable temperature in cement (first cell next to liner), (bottom right) HLW disposal cell in clay: HYTEC modelling of the evolution of the mineralogy of the full disposal cell components after 30 000 years of interaction.
