Fig. 7.
Download original image

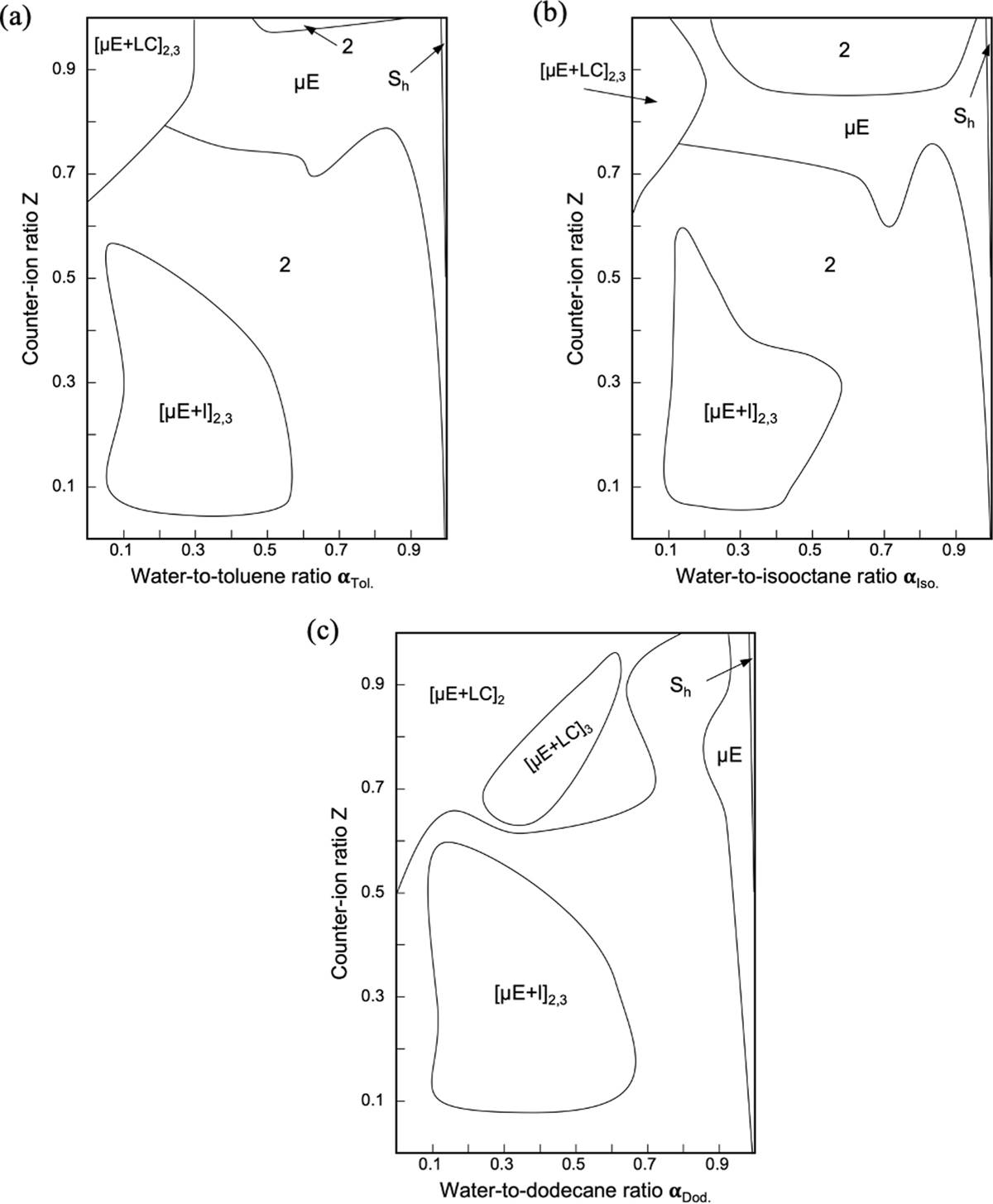

Experimental chi-cuts of the phase prism using water-to-dodecane mass ratio as x-axis and the sodium counter-ion mol fraction Z controlling spontaneous curvature as y-axis. Sh is dry insoluble extractant, LC means one unidentified liquid crystal and μE refers either to a micellar solution or to a microemulsion. (a) Toluene (b) iso-octane (c) dodecane.
