Fig. 2
Download original image

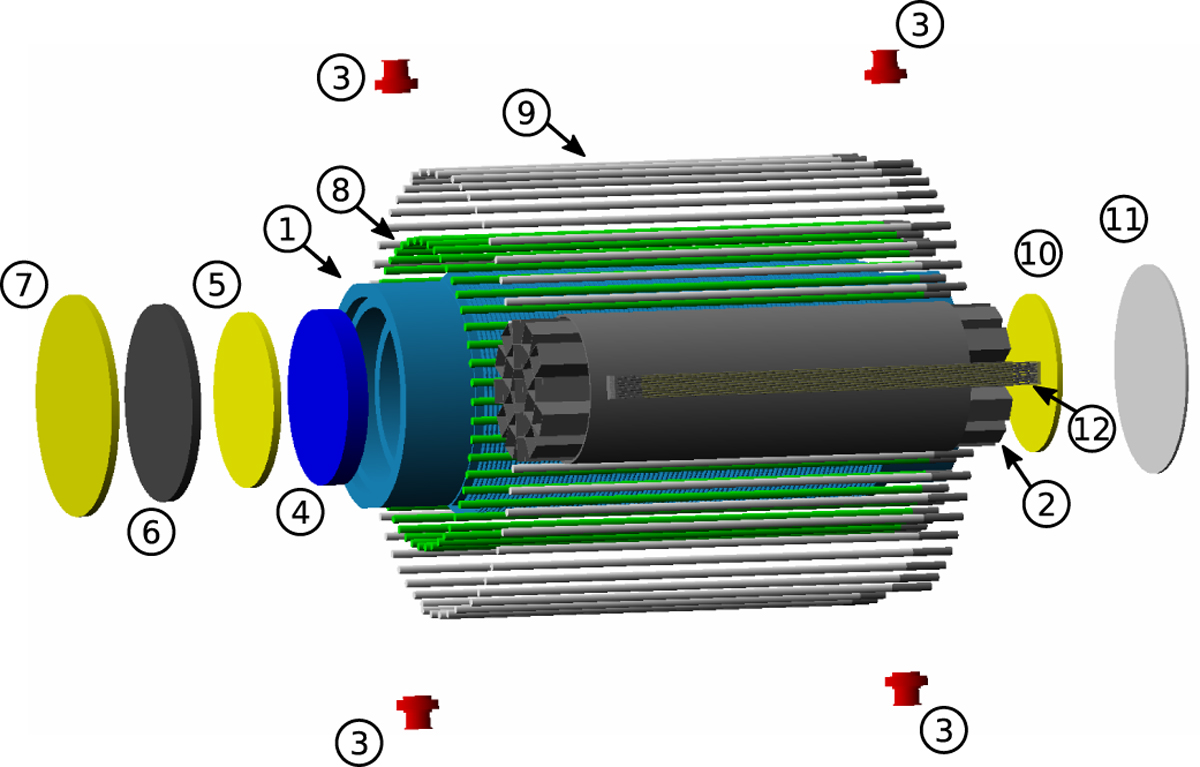

Exploded view of the generic model showing its individual components: monolithic body (1), basket with 19 fuel compartments (2), trunnions (3), primary lid (4), polyethylene plate (5), secondary lid (6), protection plate (7), inner moderator rods and plugs (8), outer moderator rods and plugs (9), polyethylene plate (10), base plate (11) and a representative fuel assembly (12). See text for details.
